TBC-GJ / Liquid cooling & CDU
Liquid-cooling pipework
Pipe families for reviewing the coolant distribution route and material compatibility.
Final configuration, performance, applicable requirements and delivery are defined in the agreed project specification.
Discuss your project ↗TBC-GJ
Technical specifications
| Technical specifications | Value |
|---|---|

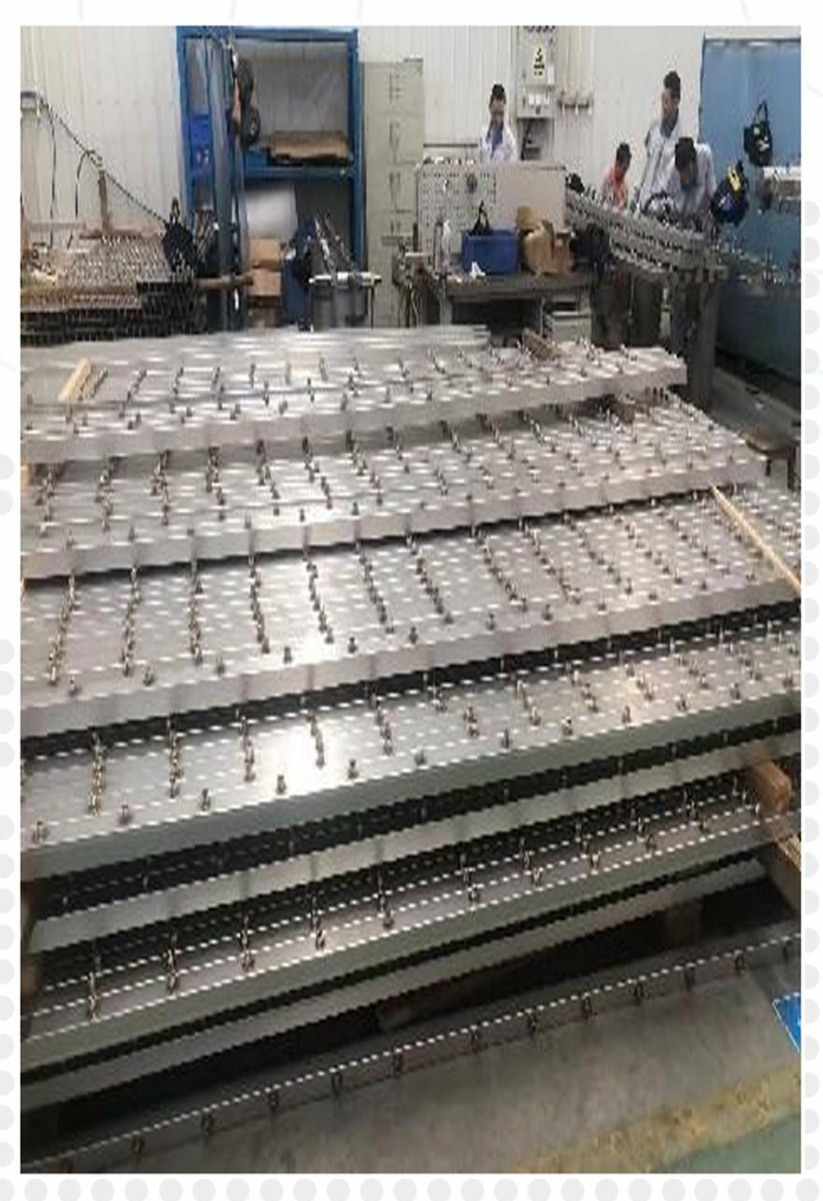

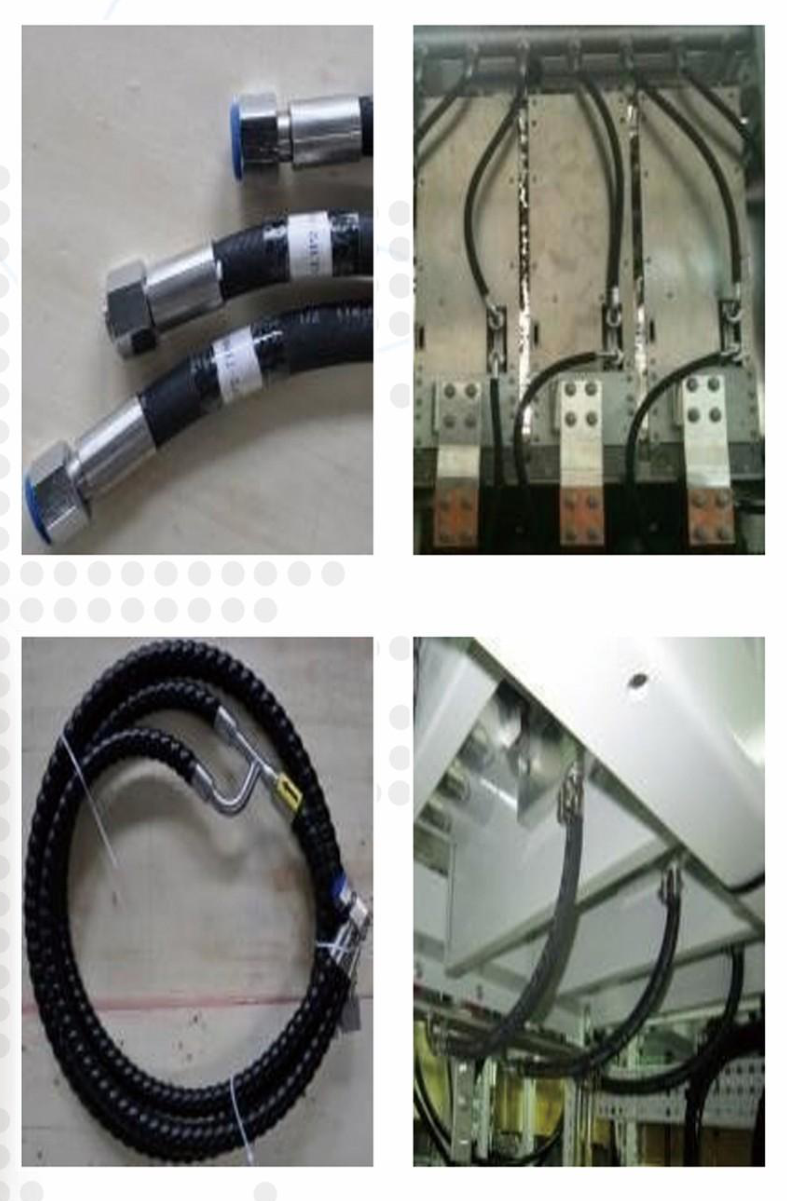

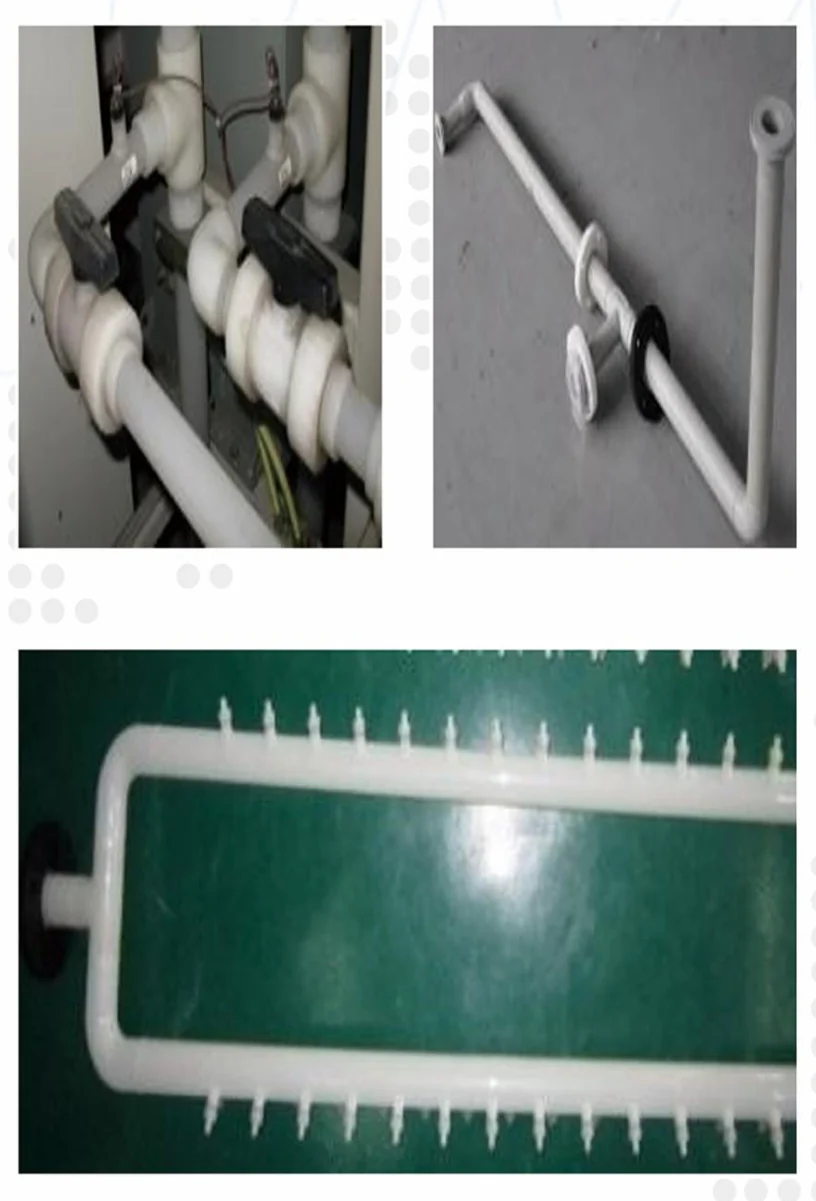

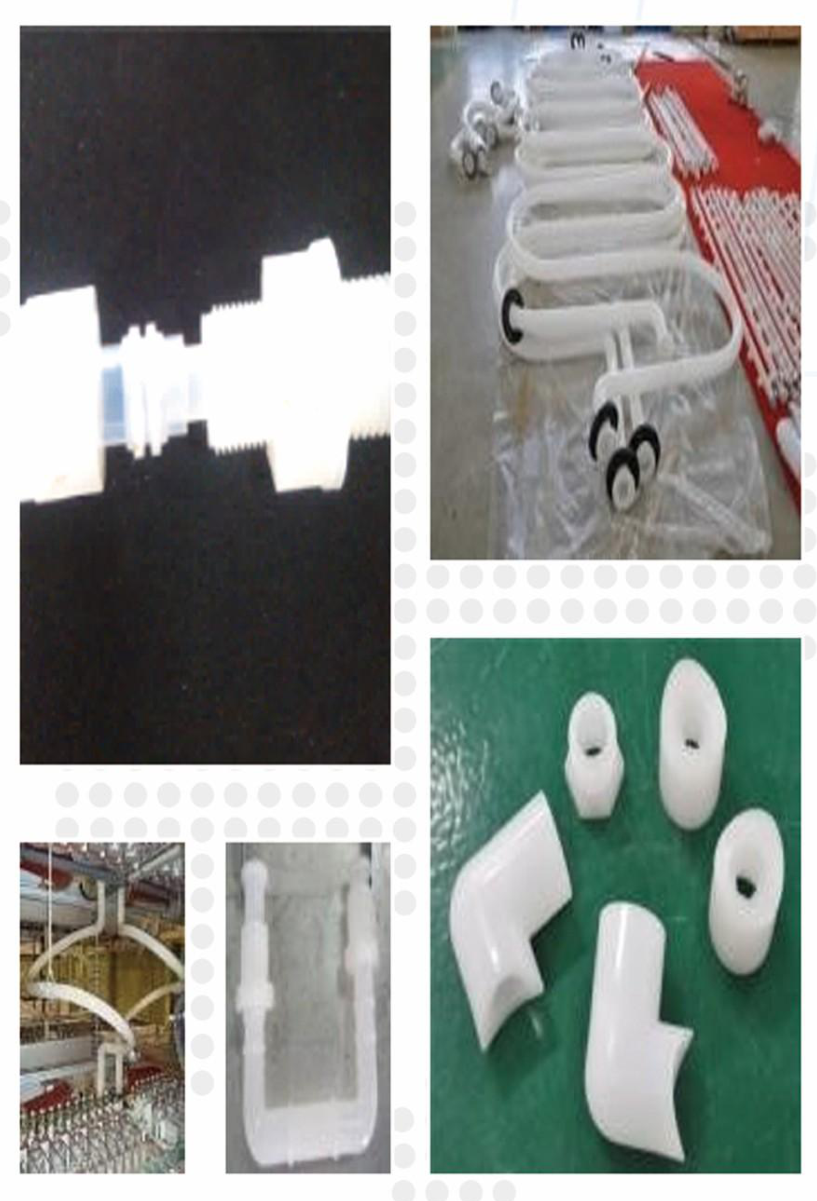

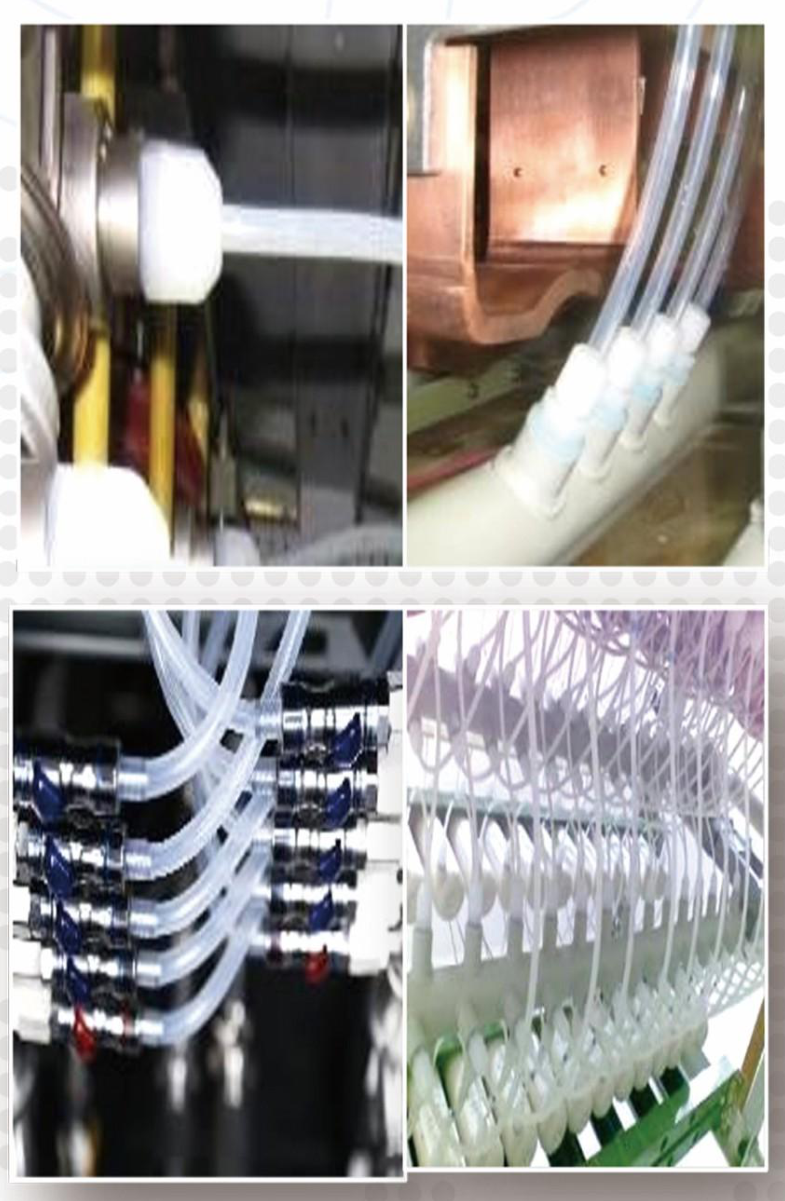

| Pipe families | TBC-GJ-PVDF: PVDF TBC-GJ-PPH: PPH TBC-GJ-304 TBC-GJ-PA TBC-GJ-RU: EPDM |
Confirm diameters, pressure ratings, connector drawings and coolant compatibility. TBC-GJ-PA lists several material options; the model code alone does not define the material.
Product images
Configuration depends on project requirements.
Information for a quotation
- 01Coolant specification, operating temperature and pressure
- 02Pipe material, diameter, routing and required lengths
- 03Connector drawings, quantity, compatibility and test requirements
Editable text checklist with this product and the information to prepare.
